螺旋手動頭

Actuator with helix

產品簡介

本產品采用絲杠絲母和螺旋傳動套驅動閥門,傳動效率高,體積小，輸出扭矩大,能夠可靠自鎖。適用于90°回轉的蝶閥、球閥、調節閥等閥門]在地下鋪設管道時的控制。

This product characterized by small size,light weight,large output torque,rational structure,easy to operate and having reliably self-hold capacity. Suitable to control the 90° rotay buttefly valve,ball valve, cock valve, etc when in the underground conduit laying.

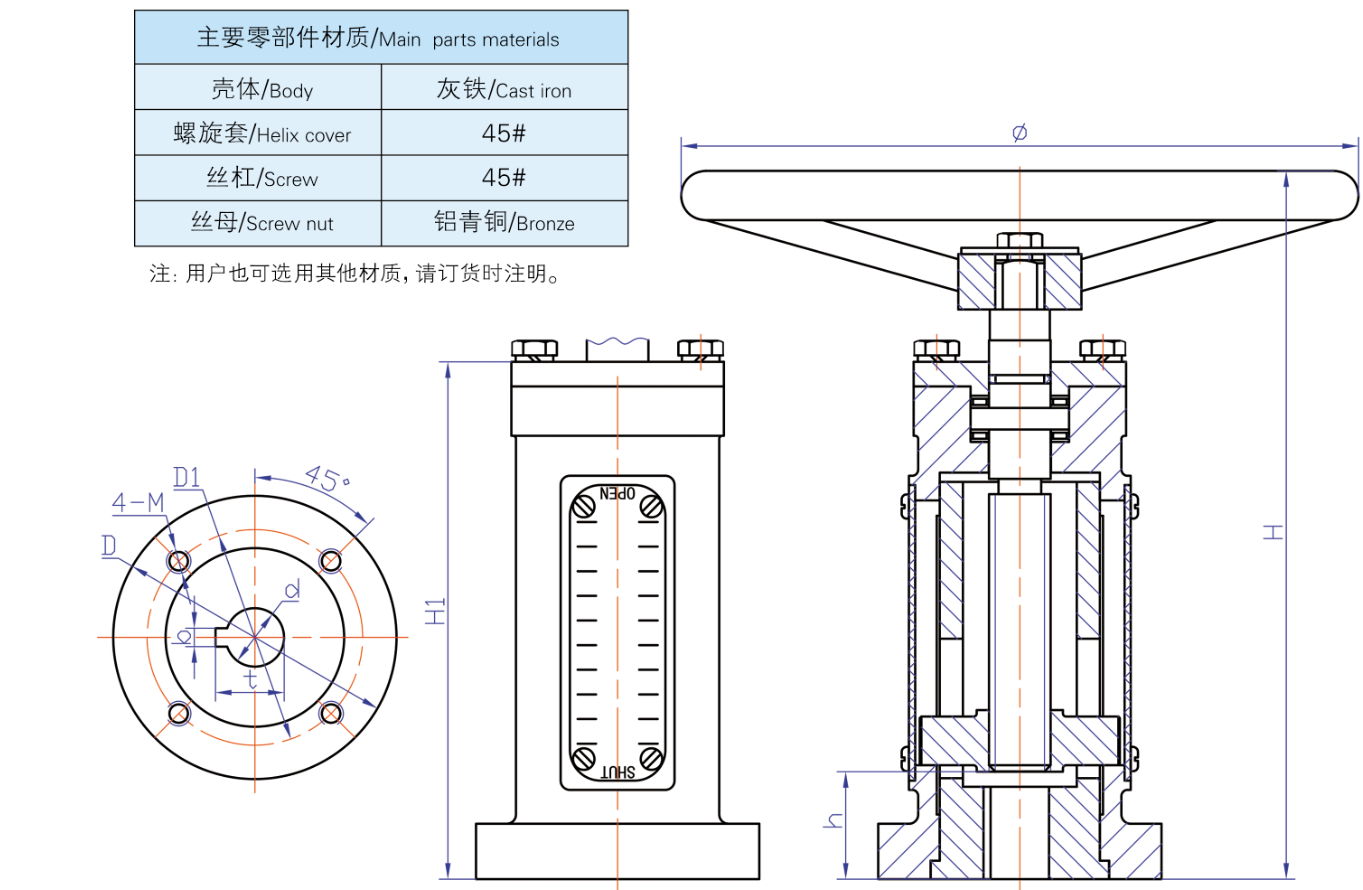

外形尺寸表

規格 Model	閥門口徑 Size	額定扭矩 Torque(Nm)	d	b	t	D	D1	4-M	H	H1	φ	h
LX10	2-3"	100	12.7	3	14.1	77	50	4-M6	200	145	150	32
LX20	4"	200	15.9	5	18.2	90	70	4-M8	230	168	200	35
LX20	5-6"	200	19.05	5	21.35	90	70	4-M8	230	168	200	35
LX50	8"	500	22.2	5	24.5	125	102	4-M10	259	200	250	44
LX50	10"	500	28.6	8	31.9	125	102	4-M10	259	200	250	44
LX60	12"	750	31.8	8	35.1	125	102	4-M10	293	230	300	46
LX120	14"	1200	31.8	8	35.1	170	140	4-M16	350	271	3800	50

首頁>產品中心

螺旋手動頭

Actuator with helix

產品簡介

本產品采用絲杠絲母和螺旋傳動套驅動閥門,傳動效率高,體積小，輸出扭矩大,能夠可靠自鎖。適用于90°回轉的蝶閥、球閥、調節閥等閥門]在地下鋪設管道時的控制。

This product characterized by small size,light weight,large output torque,rational structure,easy to operate and having reliably self-hold capacity. Suitable to control the 90° rotay buttefly valve,ball valve, cock valve, etc when in the underground conduit laying.

外形尺寸表

規格 Model	閥門口徑 Size	額定扭矩 Torque(Nm)	d	b	t	D	D1	4-M	H	H1	φ	h
LX10	2-3"	100	12.7	3	14.1	77	50	4-M6	200	145	150	32
LX20	4"	200	15.9	5	18.2	90	70	4-M8	230	168	200	35
LX20	5-6"	200	19.05	5	21.35	90	70	4-M8	230	168	200	35
LX50	8"	500	22.2	5	24.5	125	102	4-M10	259	200	250	44
LX50	10"	500	28.6	8	31.9	125	102	4-M10	259	200	250	44
LX60	12"	750	31.8	8	35.1	125	102	4-M10	293	230	300	46
LX120	14"	1200	31.8	8	35.1	170	140	4-M16	350	271	3800	50

產品簡介

本產品采用絲杠絲母和螺旋傳動套驅動閥門,傳動效率高,體積小，輸出扭矩大,能夠可靠自鎖。適用于90°回轉的蝶閥、球閥、調節閥等閥門]在地下鋪設管道時的控制。

This product characterized by small size,light weight,large output torque,rational structure,easy to operate and having reliably self-hold capacity. Suitable to control the 90° rotay buttefly valve,ball valve, cock valve, etc when in the underground conduit laying.

外形尺寸表

規格 Model	閥門口徑 Size	額定扭矩 Torque(Nm)	d	b	t	D	D1	4-M	H	H1	φ	h
LX10	2-3"	100	12.7	3	14.1	77	50	4-M6	200	145	150	32
LX20	4"	200	15.9	5	18.2	90	70	4-M8	230	168	200	35
LX20	5-6"	200	19.05	5	21.35	90	70	4-M8	230	168	200	35
LX50	8"	500	22.2	5	24.5	125	102	4-M10	259	200	250	44
LX50	10"	500	28.6	8	31.9	125	102	4-M10	259	200	250	44
LX60	12"	750	31.8	8	35.1	125	102	4-M10	293	230	300	46
LX120	14"	1200	31.8	8	35.1	170	140	4-M16	350	271	3800	50
