一級傳動裝置

Single-stage drive device

產品簡介

本產品采用蝸輪蝸桿傳動副。體積小、重量輕,輸出扭矩大、結構合理、操作方便，具有可靠的自鎖性。適用于90°回轉的蝶閥、球閥、旋塞閥等閥i門的控制。

In this product a gear-worm drive set is used this product is characterized by small size, light weight, large output torque, rational structuSre, to open and having reliably self-hold capacity. It is suitable to control the 90° rotay buttefly valve, ball valve, cock valve and reulating valve, etc.

技術參數

型號/ Model	額定扭矩/Torque（N.m）	速比/Ratio	輸入扭矩/Input(N.m)	重量/WT(kg)	備注/Remarks
3D-15	170	24:1	30	3.2
3D-50	750	38:1	80	9.5
3D-120	1200	50:1	100	12
3D-250	2500	80:1	170	32
3D-300	3000	86:1	180	37

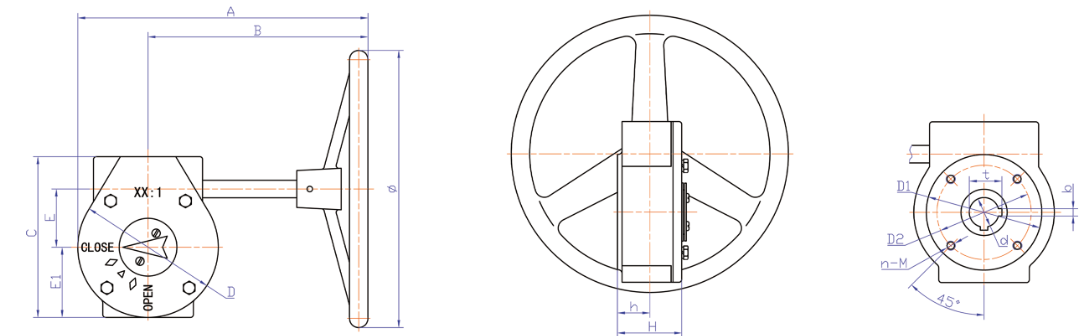

外形尺寸表

型號/ Model	A	B	C	D	E	H	Φ	h	E1
3D-15	206	158	114	96	43.5	58	150	29	48
3D-50	311	240	167	142	63	70	300	35	71
3D-120	307	229	190	156	78	73	300	38	78
3D-250	418	288	290	260	120	110	380	58.5	130
3D-300	409	271	309	275	130	114	380	60.5	138

連接尺寸表

型號/ Model	適用蝶閥口徑/Available opening of butterfly valve		d	b	t	D1	D2	n-M
型號/ Model	公制/metric system	英制/british system	d	b	t	D1	D2	n-M
3D-15	50-80	2”-3”	12.7	3	14.1	92	57.15	4-M6
	100	4”	15.9	5	18.2		70	4-M8
	125-150	5”-6”	19.05	5	21.35		70	4-M8
3D-50	200	8”	22.2	5	24.5	125	88.9	4-M12
3D-50	250	10”	28.6	8	31.9	125	88.9	4-M12
3D-120	300-350	12”-14”	31.8	9	35.1	140	108	4-M12
3D-250	400	16”	33.3	10	36.6	200	158.75	4-M18
3D-250	450	18”	38.1	10	41.4	200	158.75	4-M18
3D-300	500	20”	41.3	10	44.6	200	158.75	4-M18
